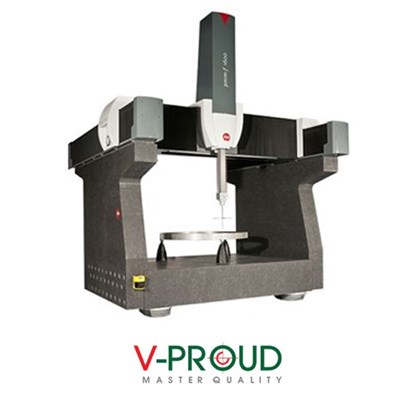

Leitz PMM-F 30.20.10 and 30.20.16 measuring machines – where accuracy meets throughput. The PMM-F is designed to inspect medium sized components and gears not only with maximum accuracy, but with a high throughput as well. The spindle drive design combined with an overhead structure with minimized mass allows measuring velocities previously unthinkable for measuring machines of this size.

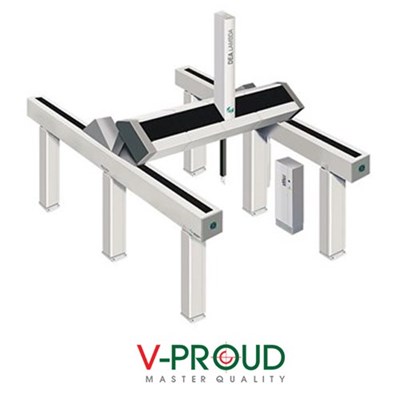

The DEA LAMBDA SP is a line of very large measuring machines designed for operation in industrial environments. LAMBDA SP excels in high-speed, high-accuracy inspection of huge components, such as marine engines, aircraft structures or turbines that require open, modular, easily customizable structures with virtually unlimited measuring volumes.

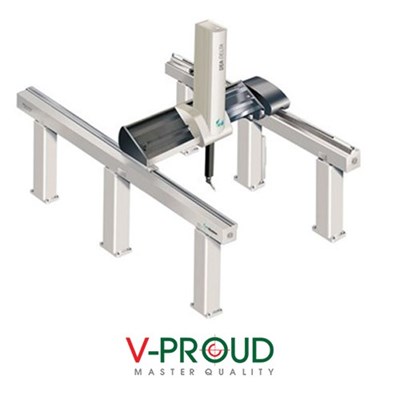

The DEA DELTA SLANT is a line of gantry CMMs that excel in the high-accuracy inspection of large machined parts due to their superior mechanical structure. DELTA SLANT is available in two versions: Classic and Performance. The optional SF-Kit (Shop Floor) is available for the installation of both Classic and Performance models for use in a workshop environment.
DEA ALPHA 2.0 is an all-purpose gantry coordinate measuring machine (CMM) suited to the dimensional inspection of large workpieces such as castings and machined parts. Equipped with both tactile probes and a 3D laser scanning head, it can rapidly acquire millions of data points from complex contoured shapes and is the ideal system for measuring large-volume components as well as 3D surfaces.
The GLOBAL eXtra can accommodate large and heavy workpieces without the need for special foundations. The GLOBAL eXtra, designed for measurement in the production environment, features ACTIV® structural thermal compensation, bellow covers on X and Y guideways and operating temperatures up to 30°C. For unlimited access to hard-to-reach features, these larger size GLOBAL CMMs can be equipped with HH-ACW-43MW continuous wrist.
The GLOBAL Advantage coordinate measuring machine (CMM) is optimised to measure large dimensional components with complex geometries in the automotive, aerospace and industrial machining industries. By utilising the versatility of the CMM, you can remove the bottleneck within the quality department and enable faster part setup for large complex parts.
The Leitz PMM-G provides highest accuracy and a highly enhanced throughput for large-size XXL workpieces. These workpieces are used for example in aircraft and aerospace industries or in ship engine constructions. Also the measurement of large gears used in wind turbines is possible. Despite such large measuring strokes, the Leitz PMM-G reaches a precision and performance level, which is usually common with much smaller 3D measuring machines.
