Leitz Reference Xi

The Reference Xi series continues the Leitz hallmark of high accuracy scanning performance. It also offers an unparalleled flexibility of probe head choices: from the LSP-X1 coupled with the TESASTAR-m continuous wrist, to the LSP-X3c fixed measurement head, up to the LSP-X5, for use with extra-long stylus extensions or heavy styli clusters. The Leitz Reference Xi is also available with the Option XT (eXTended temperature range). With this option the CMM can be integrated in production easily.

The accuracy is there in every situation – whether measuring with indexing or fixed measurement heads. With a multi-sensor controller, the Leitz Reference Xi series is also well equipped for the integration of vision measurement sensors. The secret is in the name for the Leitz Reference Xi range – “Xi” stands for “fleXible”. With the Option XT – including a sophisticated temperature compensation – the Leitz Reference Xi measures reliably throughout the extended temperature range of 15 to 30 degrees Celsius. Indispensible for measuring in a production environment.

Moving portal with patented TRICISIONTM technology
High resolution AURODUR steel scales, with automatic temperature compensation
Granite table with integrated dovetail guideways
Guiding systems with pre-stressed air bearings
A broad array of Leitz 3D probe systems is available: LSP-X5, LSP-X3c, LSP-X1s/h on the TESASTAR-m indexable probe head
Optional: automatic styli changer
Option XT: extended temperature range and covered rails

CMM Specifications and Gear Inspection

CMM Specifications

Leitz Reference Xi, Temperature range 18° â€“ 24 °C

Model	X stroke [mm]	Y stroke [mm]	Z stroke [mm]
5.4.3	500	400	300
10.7.6	1000	700	560
15.9.7	1500	900	700
20.9.7	2000	900	700
22.12.9	2200	1200	900
30.12.10	3000	1200	1000
40.12.10	4000	1200	1000
45.12.10	4500	1200	1000
30.15.10	3000	1500	1000

Leitz Reference Xi option XT:

Temperature range 15° – 30°C

Model	X stroke [mm]	Y stroke [mm]	Z stroke [mm]
5.4.3	500	400	300
10.7.6	1000	700	560
15.9.7	1500	900	700
20.9.7	2000	900	700
22.12.9	2200	1200	900
30.12.10	3000	1200	1000
40.12.10	4000	1200	1000
45.12.10	4500	1200	1000

Temperature range 30° – 35°C

Model	X stroke [mm]	Y stroke [mm]	Z stroke [mm]
5.4.3	500	400	300
22.12.9	2200	1200	900
30.12.10	3000	1200	1000
40.12.10	4000	1200	1000
45.12.10	4500	1200	1000

Gear Inspection

Cylindrical gears:

Spur, helical, double helical, splines (internal and external)
Clutch gears (internal and external)
Gear segments (minimum no. of teeth: 1)
Gear racks

Bevel gears:

Straight bevel, spiral bevel, hypoid bevel, crown gears

Curvic Couplings

Gear cutting tools:

Hob cutter, broach, shaper cutter, shaving gears, form cutter

Available interfaces:

Gleason GAGE 4/WIN; Klingelnberg KIMOS, DMG, Depo

Evaluation standards:

DIN, ISO, AGMA, ANSI, JIS, CNOMO, CAT

Gear inspection with Leitz Reference Xi	Reference Xi 5.4.3	Reference Xi 10.7.6	Reference Xi 15.9.7 20.9.7	Reference Xi 22.12.9 30.12.9 40.12.9 45.12.9	Reference Xi 30.15.10
Module range [mm]	0,5 – 100	0,5 – 100	0,5 – 100	0,5 – 100	0,5 – 100
Max. gear dia. – spur [mm]	350	650	850	1150	1450
Max. gear dia. â€“ helical* [mm]	200	450	600	900	1200
Max. gear width [mm]	300	600	700	900	1000
Max. shaft length [mm]	500	1000	1500 / 2000	2000 / 3000 / 4000 / 4500	3000

* Depending on styli configuration and module

Building a world where quality drives productivity

Hexagon Manufacturing Intelligence helps industrial manufacturers develop the disruptive technologies of today and the life-changing products of tomorrow. As a leading metrology and manufacturing solution specialist, our expertise in sensing, thinking and acting – the collection, analysis and active use of measurement data – gives our customers the confidence to increase production speed and accelerate productivity while enhancing product quality.

Through a network of local service centres, production facilities and commercial operations across five continents, we are shaping smart change in manufacturing to build a world where quality drives productivity.

Hexagon is a global leader in sensor, software and autonomous solutions. We are putting data to work to boost efficiency, productivity, and quality across industrial, manufacturing, infrastructure, safety, and mobility applications. Our technologies are shaping urban and production ecosystems to become increasingly connected and autonomous — ensuring a scalable, sustainable future.

Hexagon (Nasdaq Stockholm: HEXA B) has approximately 20,000 employees in 50 countries and net sales of approximately 3.8bn EUR.

Sản phẩm liên quan

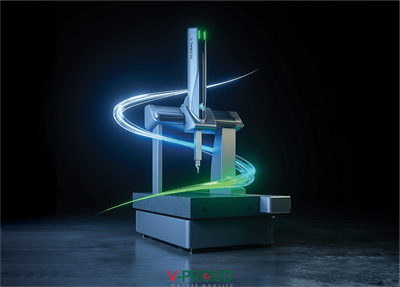

GLOBAL S
