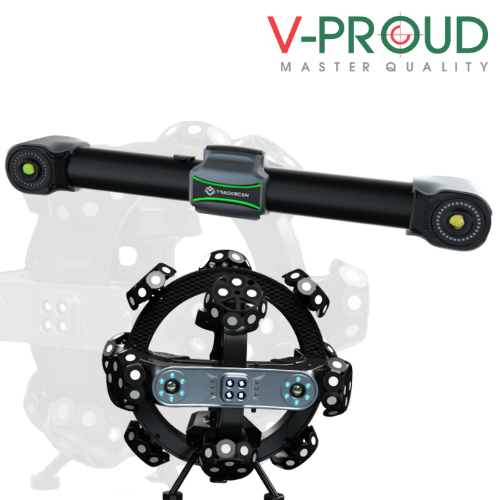

TRACKSCAN-P542 OPTICAL 3D TRACKING SCANNER

The TrackScan P-542 is an advanced optical 3D scanning system by SCANTECH, unlock the future of industrial-grade 3D scanning with the TrackScan-P542, offering unmatched precision, marker-free technology, and multi-scenario adaptability.

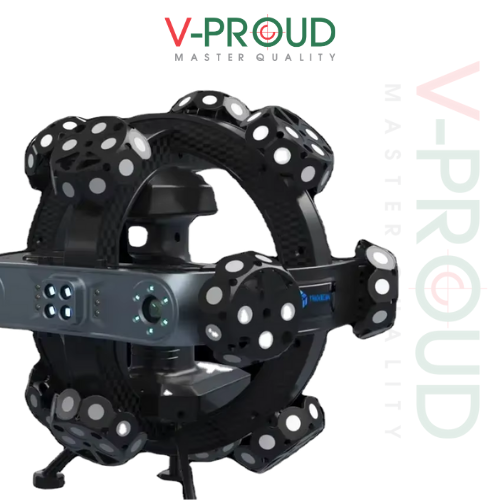

The TrackScan-P542 is a state-of-the-art optical 3D measurement system developed by SCANTECH. Known for its precision and efficiency, the TrackScan-P542 uses an innovative marker-free tracking technology, which significantly reduces the setup time and makes scanning easier for users. By eliminating the need for physical markers, this system not only simplifies the scanning process but also enhances the accuracy of results in complex industrial environments.

This advanced scanner is designed for various industries, including aerospace, automotive, heavy machinery, and industrial manufacturing. It allows professionals to conduct high-precision 3D measurements, surface inspections, and reverse engineering of components with unparalleled speed and detail. The scanner’s multi-functionality and robust design make it the perfect solution for businesses seeking to improve productivity and reduce production costs.

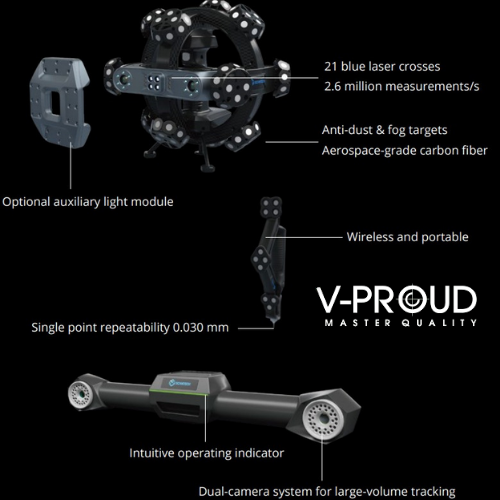

  • Marker-Free Scanning: TrackScan-P542 eliminates the need for physical markers, drastically reducing preparation time. It uses an optical tracking system that can precisely determine the object’s 3D coordinates in real time.
  • High-Speed Measurement: Capable of measuring up to 2.2 million points per second, TrackScan-P542 provides rapid scanning for both small and large-scale applications. It delivers fast and reliable results without sacrificing quality.
  • Superior Accuracy: The system offers an exceptional volumetric accuracy of 0.025 mm/m, which ensures that even the finest details of an object are captured with high precision. This feature is essential for applications like quality control and reverse engineering.
  • Lightweight and Portable: The device is highly portable, allowing users to perform scans in multiple locations with minimal effort. Its ergonomic design makes it comfortable to handle in various working conditions.
  • Adaptable Scanning Modes: With different scanning modes, including standard, high-precision, and hole-scanning modes, the TrackScan-P550 can adapt to various inspection tasks. This makes it ideal for scanning surfaces, edges, and hard-to-reach areas.
  • Non-contact Measurement: The Class II laser technology provides non-contact scanning, ensuring user safety and protecting the surfaces of sensitive materials from damage during the scanning process.
  • Operating in Harsh Environments: The device is designed to function in challenging industrial environments, with an operating temperature range from -10°C to 40°C. This durability ensures consistent performance, regardless of the conditions.

Number of Lasers

17 blue laser lines (Triple Cross Technology), 7 blue parallel laser lines, 1 extra blue laser line

Accuracy

0.025 mm

Laser class

II

Resolution

0.020 mm

Scanning Speed

2.2 million measurements/second

Stand-off distance

300 mm

Scanning Area Size

 500 mm x 600 mm

Operating Temperature Range

-10°C to 40°C

SCANTECH is proud to be one of the leading manufacturers of 3D scanning solutions, aiming to deliver the most advanced technologies to serve a wide range of industrial sectors. With a reputation built on a commitment to quality and service, SCANTECH continually innovates to provide outstanding value to customers worldwide.

V-Proud - the official distributor of SCANTECH in Vietnam, is committed to providing not only high-quality products but also professional technical support services, ensuring to meet the most demanding needs of our customers.
