TRACKSCAN SHARP49 OPTICAL 3D SCANNING SYSTEM

The TrackScan Sharp49 is an advanced optical 3D scanning system by SCANTECH, offering large-scale measurement capabilities with high precision, all without the need for target markers. With impressive scanning speeds and wireless functionality, this system provides users with unmatched flexibility across a variety of industrial sectors.

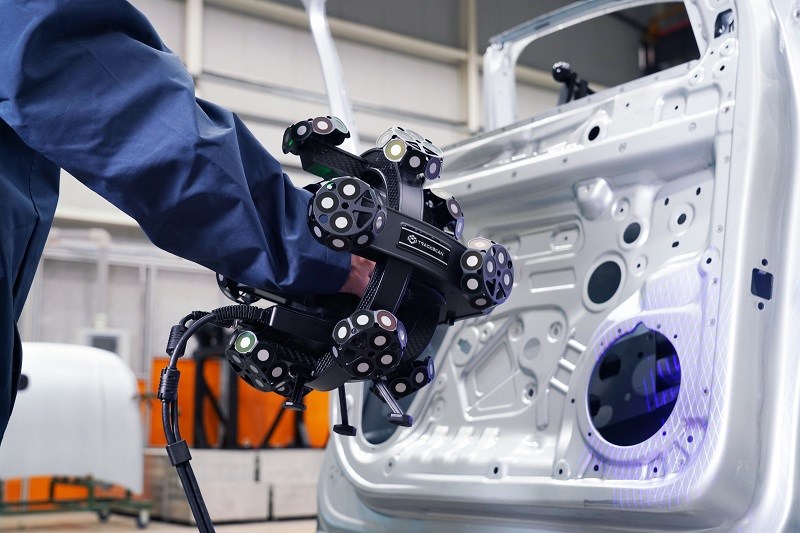

TrackScan Sharp49 optical scanning system from SCANTECH is a top-tier 3D scanning solution for large-scale industrial measurement applications. Equipped with 21 blue laser lines, 7 blue parallel laser, 1 extra blue laser lines lines and a 25-megapixel industrial camera, TrackScan Sharp49 can scan at speeds of up to 2.6 million measurements per second, quickly and accurately collecting data even from complex objects. With a measurement range of up to 135 m³, this system is ideal for industries such as aerospace, energy, automotive, and heavy manufacturing.

Long-distance and large-volume measurement: Scanning range up to 8.5 meters and measuring volume 135 m³, suitable for large objects without moving the device many times.
Fast scanning speed: The system is capable of performing 2.6 million measurements per second with 21 green laser lines, 7 parallel green laser lines with fine scanning, 1 deep scanning green laser line ensures fast data collection without affecting accuracy.
No need to attach targets: No need to attach reference points, saving time and costs for users.
Wireless operation: The system is completely wireless, allowing users to move flexibly during scanning, suitable for complex production environments.
High flexibility: Can be integrated with robot arms, using probes such as i-Probe to perform measurements in inaccessible areas and expand the measurement range.
High precision: Accuracy up to 0.025 mm, ideal for demanding industrial measurement requirements..

Number of Lasers	21 blue laser lines (Triple Cross Technology), 7 blue parallel laser lines, 1 extra blue laser line
Accuracy	0.025 mm
Laser class	II
Resolution	0.020 mm
Scanning Speed	2.6 million measurements/second
Stand-off distance	300 mm
Scanning Area Size	500 mm x 600 mm
Operating Temperature Range	-10°C to 40°C

SCANTECH is proud to be one of the leading manufacturers of 3D scanning solutions, aiming to deliver the most advanced technologies to serve a wide range of industrial sectors. With a reputation built on a commitment to quality and service, SCANTECH continually innovates to provide outstanding value to customers worldwide.

V-Proud - the official distributor of SCANTECH in Vietnam, is committed to providing not only high-quality products but also professional technical support services, ensuring to meet the most demanding needs of our customers.
