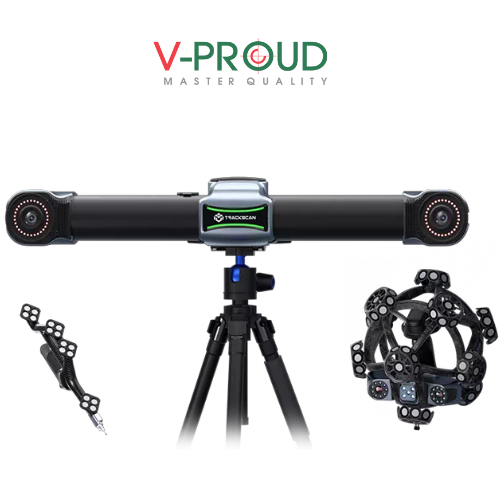

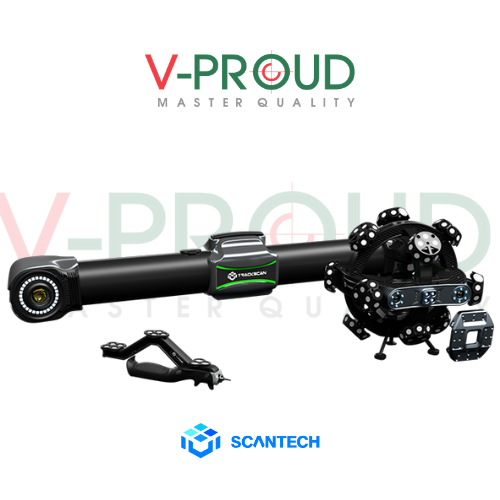

TrackScan-Sharp 3D measuring system includes:

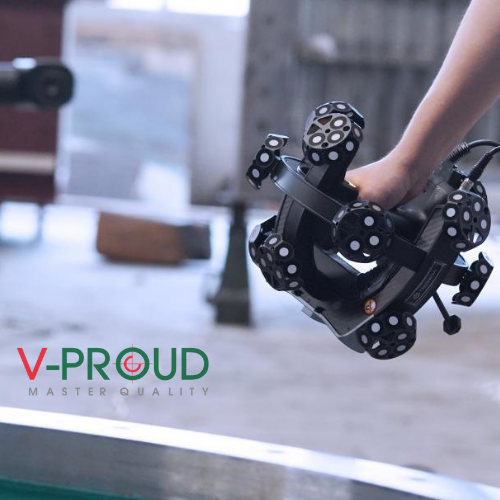

• I-Scanner mobile 3D scanner
• I-Tracker optical sensor
It is capable of measuring large-scale objects, with a tracking distance of up to 6 meters, a volumetric range of 49 m3, and an accuracy of 0.049 mm. The system utilizes the onboard processor of the I-Tracker, 25-megapixel industrial cameras, and advanced technology. It enables efficient and stable measurements, supporting both wired and wireless data transmission. The system can also work with an auxiliary light module to inspect small details. Enhancing product development and quality control.
- Large-volume Tracking
- Target-free 3D Scanning
- Edge Computing
- Edge Detection
Vast Applications
- Edge Detection: It boasts shadow-less-light edge detection with high-precision gray value measurement. Users can inspect closed features precisely, especially threaded holes. Good measurements are ensured by delivering accurate and repeatable measurement results such as positions and diameters.
- Strong Adaptability: Its highly-adaptive data acquisition algorithm ensures that the equipment can easily obtain the 3D data of objects with different surfaces and materials such as reflective, dark, and colorful surfaces.
- i-Probe: It can be paired with a i-Probe (optional with different lengths) to probe inaccessible areas, such as holes and hidden points. This contact measurement probe can deliver single-point repeatability of up to 0.025 mm.
- M-Track: Its i-Tracker can be combined with tool simulators and path-planning software to form M-Track, an intelligent robotic path-planning and guiding system. The system comprises perception, planning, and execution modules, which cater to different applications such as grinding, coating, welding, and more.
Ultra-high Pixels for Intricate Details: TrackScan-Sharp tracking 3D scanning system is equipped with a brand-new industrial camera. The camera features 25 megapixels, which is 5 times that of its previous generation. Thanks to its dynamic adaptive LED algorithm, long-distance depth of field, and strong anti-interference ability, the system can automatically acquire clear images in a range as long as 6 meters.

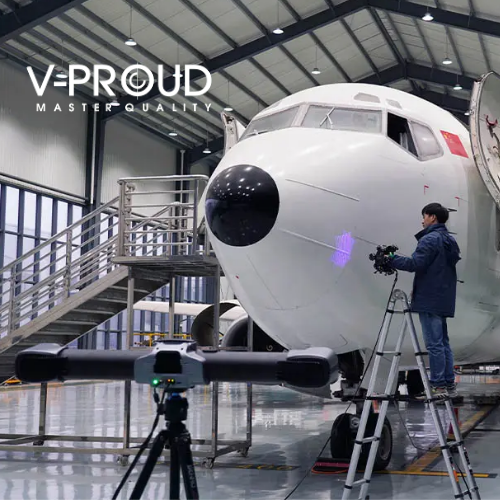

Large-volume Measurement: Powered by its wide measurement volume and robust edge measurement algorithm, TrackScan-Sharp enables one-stop scanning of large-scale parts. There is no need for users to move the tracker frequently when measuring large parts, which ensures efficient, smooth, and precise measurements.
Performance: The newly designed i-Tracker has an onboard processor for efficient image processing and data computation, which can deliver coordinates in real-time. This innovative Edge Computing saves the computer’s computing power so that it’s more capable of processing the scanned data. It optimizes the data and makes it more reliable and stable, impressing users with outstanding performance.
Remarkable Accuracy: With powerful hardware and software, TrackScan-Sharp delivers metrology-level and high-precision measurement results. This optical 3D tracking system ensures the measurement results meet high metrological demands. Thanks to its large tracking volume, which increased by around 200%, users can measure huge parts without compromising precision.
Fast 3D Scanning & New Data Transmission

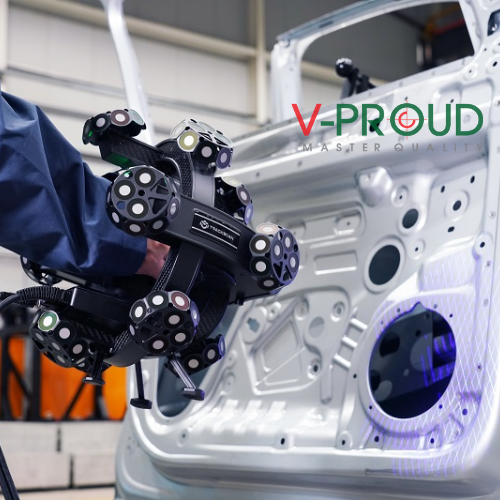

- Due to its optical tracking technology, TrackScan-Sharp can precisely measure parts without having to stick reference targets. Its large tracking volume allows users to measure multiple parts at the same time, thus significantly improving operations efficiency.
- The 3D scanning system can transfer data both with and without wires. With wired mode, the system can send data over a long distance in line with industrial measurement standards. Optional wireless mode support applications, in different working conditions, which is convenient due to its plug-and-play operations. It can be set up quickly and operated flexibly to cater to various environmental conditions, ensuring efficient measurements.
