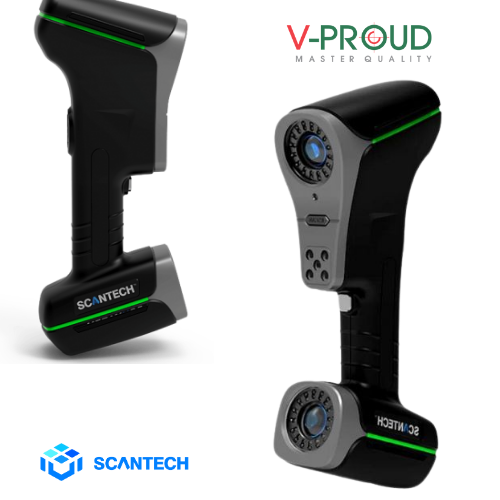

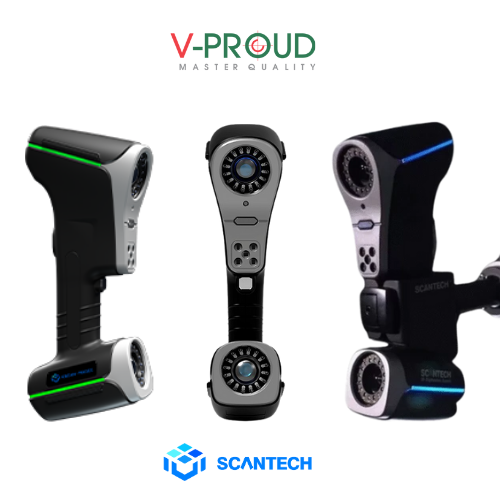

KSCAN-Magic II Composite 3D Scanner is one of the most advanced 3D scanning devices available today, developed by SCANTECH, a leading brand in the 3D scanning technology industry. Combining blue and infrared lasers, KSCAN-Magic II offers unparalleled accuracy while opening up flexible application possibilities across various industries, including aerospace, automotive, healthcare, and heavy machinery.

With its compact size (315 mm x 165 mm x 105 mm) and weight of only 0.95 kg, the KSCAN-Magic II is easy to move and operate in any working environment, from tight spaces to complex work areas. Equipped with advanced laser scanning technology with 17 cross green laser lines, 7 parallel green laser lines, and 11 infrared laser lines, 1 additional green laser, this scanner is capable of collecting up to 4.15 million measurements per second, meeting the most complex 3D scanning needs.

The KSCAN-Magic is also integrated with a photogrammetry system, enhancing accuracy to a maximum of 0.020 mm, meeting the strictest quality control requirements. Its unibody metal shell not only ensures high durability but also adds to its aesthetic appeal and provides a sturdy feel during use.

Outstanding Versatility: KSCAN-Magic II offers multiple scanning modes, suitable for applications ranging from fine details to large-area scanning.
Absolute Accuracy: With an accuracy of up to 0.020 mm, KSCAN-Magic II meets the strictest quality control standards.
High-Speed Scanning: The ability to capture up to 4.15 million measurements per second optimizes time and productivity.
Robust and Portable Design: Compact and lightweight, KSCAN-Magic II is easy to carry and use in any working environment

Technical Feature	KSCAN-Magic II
Dimensions	315 mm x 165 mm x 105 mm
Weight	0.95 kg
Accuracy	0.020 mm
Scanning Speed	Up to 2.7 million measurements/second
Number of Lasers	17 blue laser crosses, 7 blue parallel lines, 11 infrared lines, 1 additional green laser
Stand-off distance	300 mm
Scanning Area Size	Up to 1440 mm x 860 mm
Operating Temperature Range	-10°C to 40°C

SCANTECH is proud to be one of the leading manufacturers of 3D scanning solutions, aiming to deliver the most advanced technologies to serve a wide range of industrial sectors. With a reputation built on a commitment to quality and service, SCANTECH continually innovates to provide outstanding value to customers worldwide.

V-Proud - the official distributor of SCANTECH in Vietnam, is committed to providing not only high-quality products but also professional technical support services, ensuring to meet the most demanding needs of our customers.
